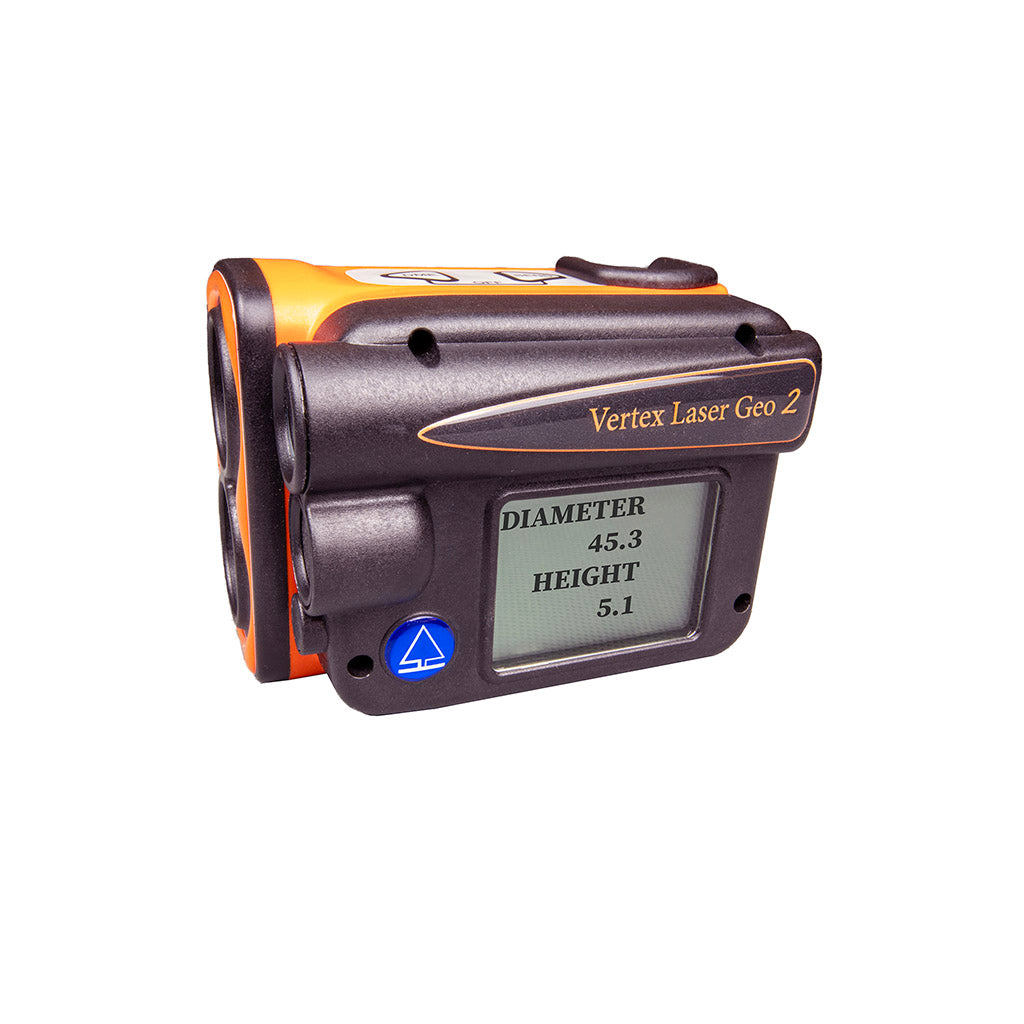

Haglof Vertex Laser Geo 2

The new Haglof Vertex Laser Geo 2 will revolutionise the way you measure, map, process, and store data in the forest and beyond. This cutting edge forestry tool incorporates a rangefinder, hypsometer, remote diameter measurement, compass, GPS and Bluetooth in the one powerful instrument.

The Vertex Laser Geo 2 provides accurate distance, height and angle measurements using either laser or ultrasonic technology. An integrated digital compass and tilt sensor allows for 3D measurements such as 3D target mapping and innovative 3D Vector functionality to measure remote targets such as canopy width.

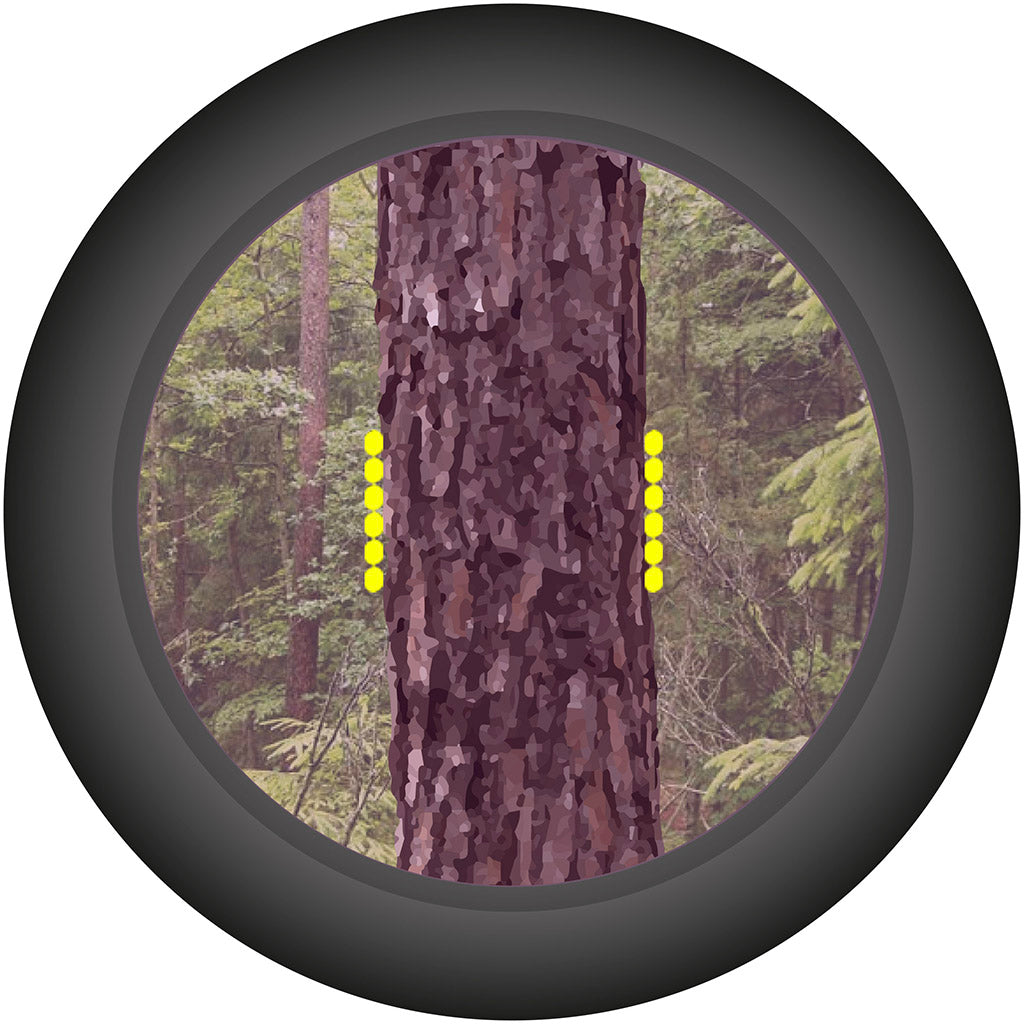

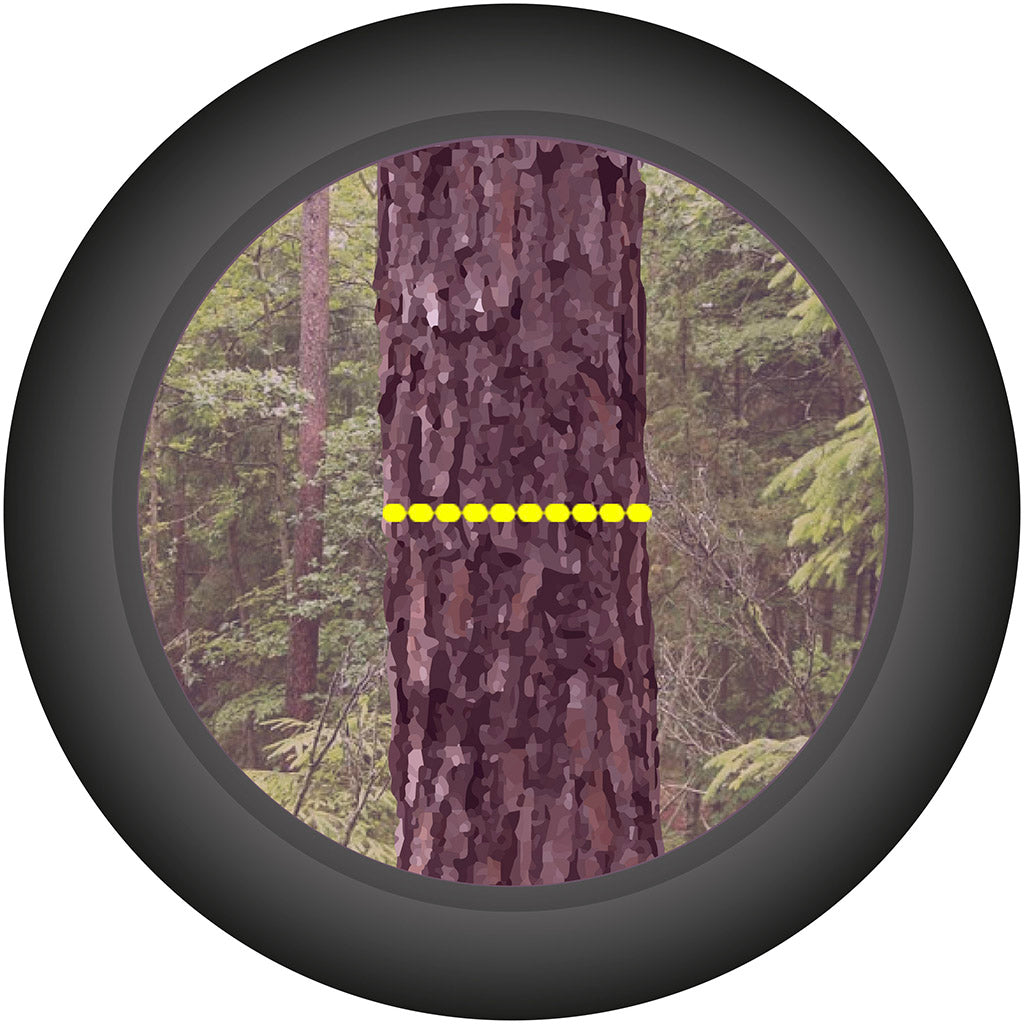

The new remote diameter measurement function enables you to record diameters while measuring tree heights or determine heights for a fixed diameter.

The built-in GPS receiver enables you to tag important data with GPS coordinates with a simple key press and the internal 1GB SSD drive provides substantial storage of data collected for later download via USB.

Height Measurement Made Easy: Choose from 3-point, 2-point or 1-point direct measurement methods with an intui­tive menu system. The non-magnifying dot view aids in identifying single targets, such as tree tops and power lines, with ease.

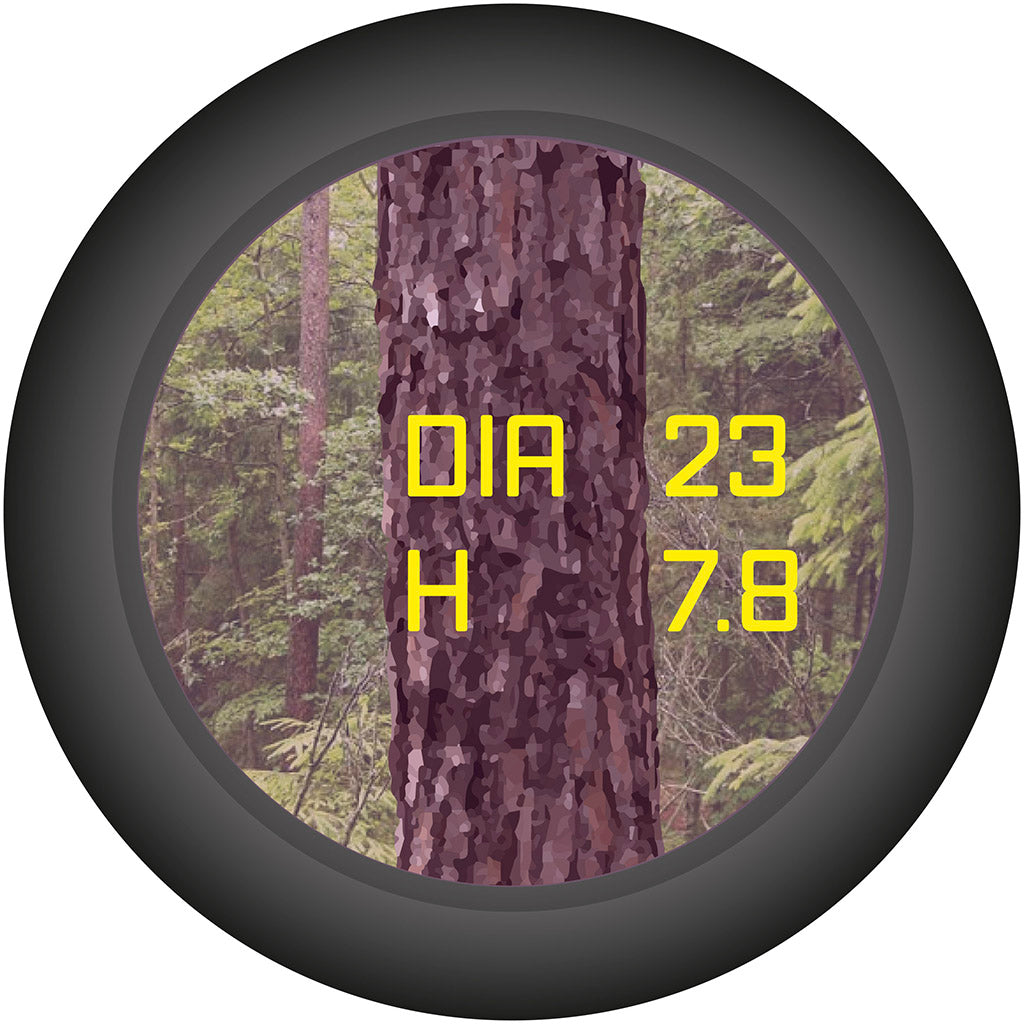

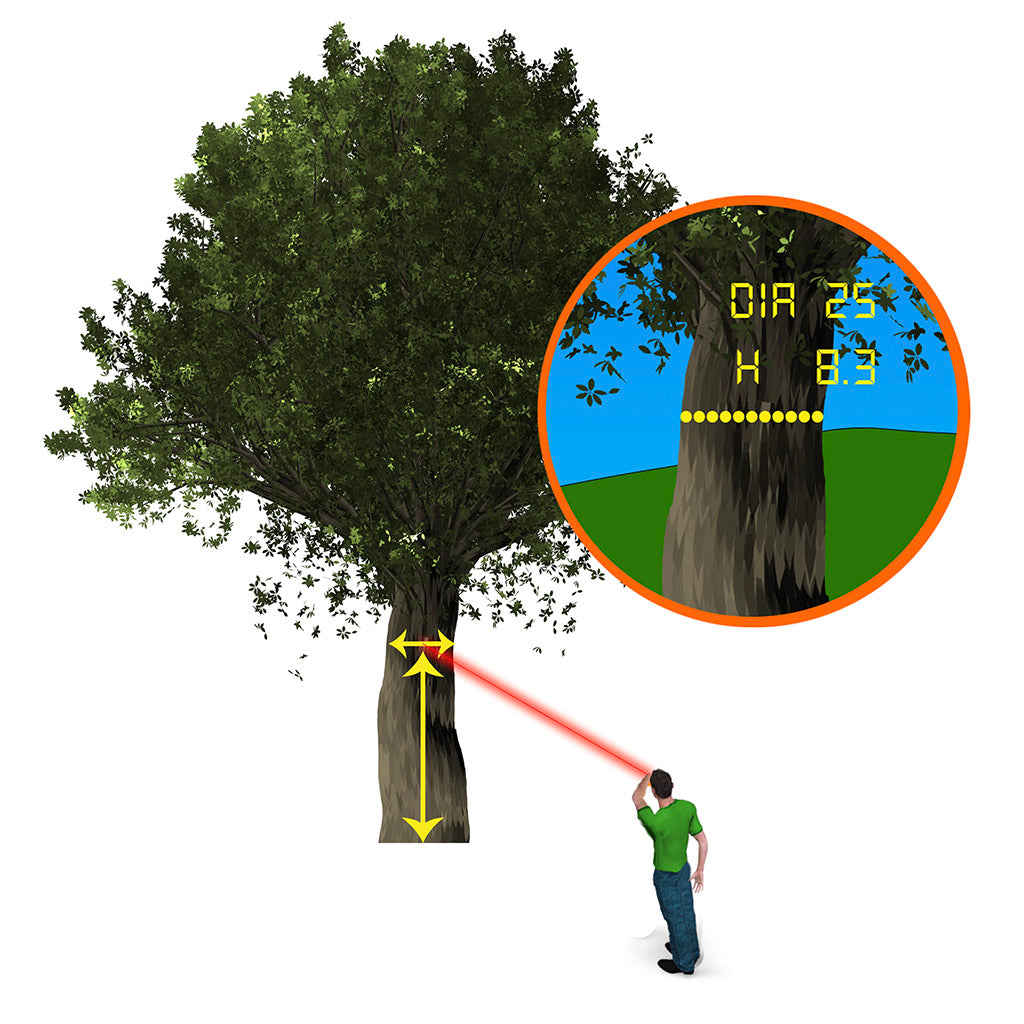

Remote Diameter Measurement: Record diameters while measuring heights, or determine heights for a fixed diameter, adding versatility to your data collection.

Ultrasound in Dense Vegetation: Measure distances with ultrasound when laser visibility is compromised. Ideal for scenarios where the target is obscured or not visible with a laser.

Reverse Prism / Basal Area Factor (BAF):This method works well in forests where the plants are thick and close together, as it gives accurate results even in these hard situations. It avoids many of the problems that come with traditional prism cruising, such as blocked views from the plot centre.

Effortless Communication and Power: Experience long­ range wireless data transfer to your handheld device with the built-in dual-mode Bluetooth V4 Low Energy transceiver. The long-lasting Li-ion battery, charged via a mini-USB inter­ face, ensures you're always ready for the field.

Manuals and Documents

Download Vertex Laser Geo 2 Brochure

Download Vertex Laser Geo 2 Manual

Specifications:

Size: 93x63x72mm

Weight: 243g

Battery and consumption: Rechargeable Li-Ion 3.7V, built-in, Charging time max 3.5h. USB mini B interface wall charger 110/220AC/ 5VDC; car charger adapter 12VDC. Cable USB mini B Male/USB Type A Male, 0.5m. Consumption max 0.9W.

Communication: IR, USB 2.0/SSD Disk. Dual-mode Bluetooth BR/EDR. Bluetooth low energy V4.2 (LE) and Classic connectivity. Spp (serial profile), pin code 1234.

Temperature: -20° to +45° C

Height: 0-999 m. Resolution height: 0.1 m

Angle: -90° - 90°. Unit: Degrees 360°, Grads 400° and %. Resolution: 0.1°. Accuracy: 0.1° typical.

Ultrasound: Distance: 30 m/98 ft. With 360° adapter: 20 m/60 ft. Accuracy distance: 1% or better typi­cal. Resolution distance: 0.01m/0.1ft.

Laser: Distance: 46cm/1.5ft - 700m/2000ft depend­ing on target. Accuracy: 4cm/0.1ft typical. Res­olution: 0.1m/ft (0.01m/0.1ft in DME-mode).

Area: 0<area<5000m2 or 0.5ha<area<10000ha, 0<area<20000f2 or 0.5acre<area<70000acre

Remote diameter: Sight range 0-46 positions. Max diameter:  98cm at 10m. Resolution:  0.1cm. Accuracy: 1.2cm at 10m

BAF: (Basal Area function) BAF factor can be set between 000.0 and
999.9 (m2/ha)

GPS: 33-channel high sensitivity receiver. Supports GPS, Glonass, Galileo, QZSS. Built-in real tme correction w SBAS (EGNOS, WAAS, MSAS, GAGAN). Accuracy down to 2.5m/8.19ft in open terrain. Satellite position prediction for up to 3 days. Host Based multi-global navigation sat­ellite system GPS(USA)/GLONASS(Russia)/Gal­ ileo(EU)/QZSS(JAPAN). SBAS Satellite-based augmentation systems: WAAS(US) EGNOS(EU) GAGAN (India) MSAS(Japan). Built-in self-generated orbit prediction (Faster TTFF up to 3 days), built-in jamming removing. Accuracy: Automatic position 2.5m CEP (circular error probable) (50% 24 hr static, -130dBm. Speed 0.1m/s (50%@30m/s).

Compass: Azimuth compass 0-360• or 0-400 ·, resolution 0,1·, accuracy <1.5 RSME

Classification: MIL-STD-810E. Housing frame material glass filled poly carbonate, IP67, NEMA6, Laser class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001).

Sight: Dot aim 1 x magnification.

Display: External Graphic LCD 700x60pixles. Internal Heads-up display.

Data format: Nmea or Ascii. IR, Bluetooth BLE.

File Format: CSV and KML Google Earth.

Memory: 2000 datasets, non-volatile.

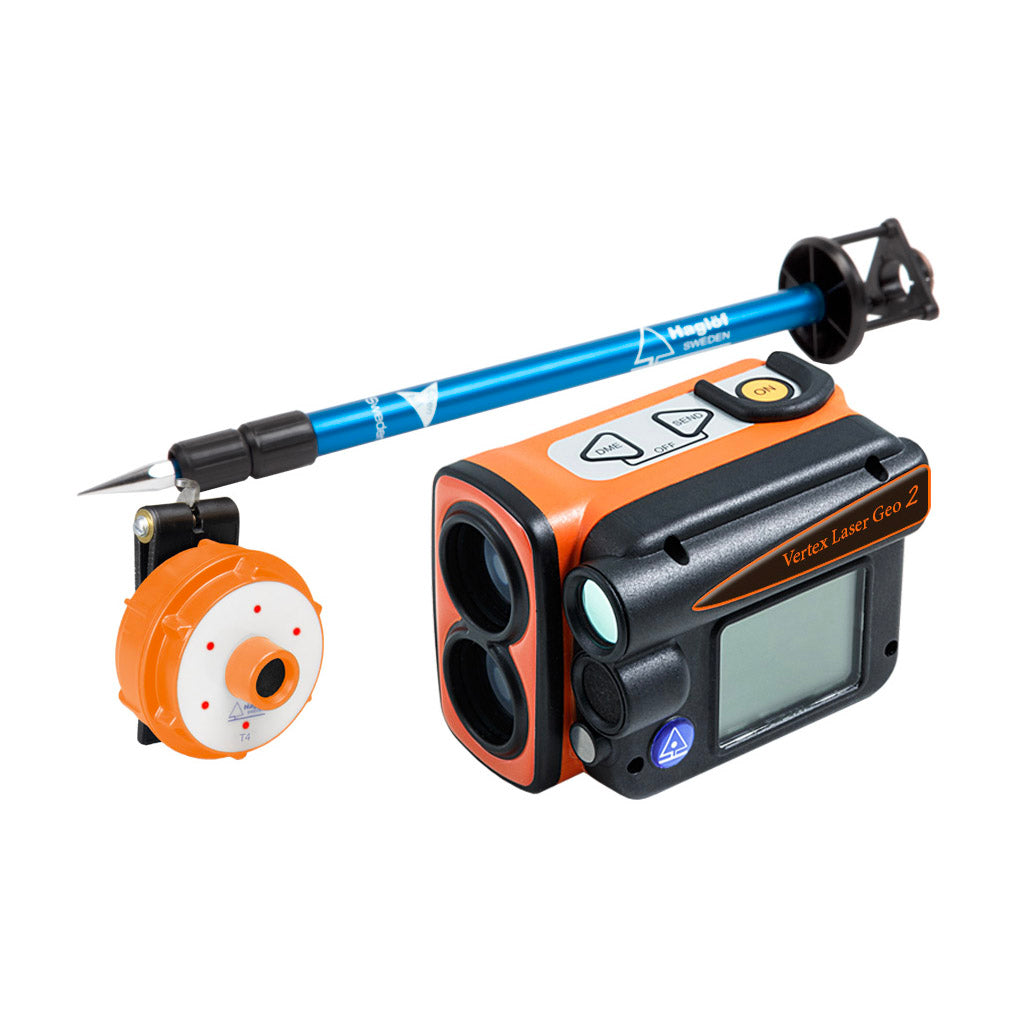

Other informa­tion, details, accessories etc: TransponderT4 for ultrasound mea­suring (1 ea AA 1.5V alkaline battery necessary for T4, power consumption 9mW). Adapter and monopod staff, 4-parts (33-140cm) weight approx. 270g. Aluminium transport/stor­ing case.
